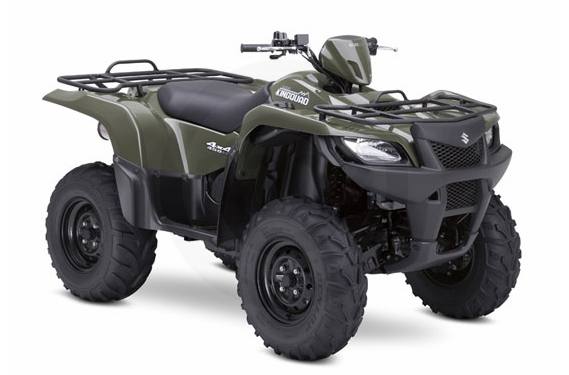

2008 Suzuki KingQuad® 450AXi
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine Features
    • Powerful 454cc, SOHC, single-cylinder, liquid-cooled engine designed for a wide powerband and strong performance
    • Compact 4-valve cylinder head with large intake valves and straight intake ports for increased cylinder charging efficiency
    • Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height
    • SCEM equipped cylinders allows lightweight cylinder construction without a sleeve for improved resistance to heat and friction
    • Durable, forged aluminum piston with L-shaped top compression ring for increased ring seal and flutter resistance
    • Electronic fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions
    • QuadMatic CVT-type automatic transmission designed for maximum versatility and convenience - fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse
    • Advanced engine brake system minimizes free-wheeling to reduce downhill speed
    • Electric 2WD, 4WD and differential-lock 4WD - convenient handlebar-mounted push-button controls allow the rider to easily select the right setting for any traction condition
    • Compact torque-sensing limited-slip front differential
    • High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature
    • High-mounted, snorkel-type air intake system, plus quick-access airbox and air filter for easy maintenance
    • Spin-on-type oil filter - simplifies oil change maintenance
    Chassis Features
    • Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support
    • Independent double A-arm front suspension with 7.1 inches of wheel travel - includes large diameter shock absorbers with 5-way spring preload adjustment
    • Fully independent, I-beam rear suspension with long suspension travel (8.1 inches) - includes 5-way preload adjustable shock absorbers and large diameter rear sway-bar
    • Large, 200mm diameter front disc brakes with new design single-piston calipers designed for strong, reliable braking performance
    • Sealed, multi-plate rear brake system - sealed, clutch-type design provides high durability, reduced unsprung weight and low-maintenance
    • Polyethylene skid plate provides front-to-rear underside protection with minimal resistance over rocks and rough terrain
    • Automotive style gated shift lever for easy and secured operation
    • Full floorboards with aggressively serrated footpegs and mud drain holes
    Utility/Convenience Features
    • Easy-to-read LCD instrument display - includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range (H,L,N,R) and drive mode (4WD, 4WD lock) - LED indicators for neutral, reverse, 4WD lock, FI/water temp. warning
    • Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light - additional 40W multi-reflector, handlebar-mounted auxiliary light
    • High output magneto generator system and large 18-amp maintenance-free battery provides extra power for cold weather starts and additional electrical accessories
    • Fender-mounted, water resistant 12V/120W electrical accessory outlet
    • Large 4.6 gallon fuel tank positioned for a low center-of-gravity - includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge
    • Rugged steel-tube racks with attractive, high-quality wrinkle paint finish for increased durability and scratch resistance
    • Large 2.8 liter water resistant front storage compartment similar to Vinson 500 - includes new easy-to-open/close screw-on cap
    • High towing capacity and standard center-mounted trailer hitch
    Specifications
    • Engine: 454cc, SOHC, four-stroke, single cylinder, liquid-cooled
    • Bore Stroke: 84mm x 82mm
    • Compression Ratio: 10.0:1
    • Fuel System: Fuel Injection
    • Lubrication: Wet sump
    • Ignition: CDI
    • Transmission: V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
    • Final Drive: Shaft drive
    • Overall Length: 2120mm (83.5 in.)
    • Overall Width: 1210mm (47.6 in.)
    • Overall Height: 1220mm (48.0 in.)
    • Seat Height: 860mm (33.9 in.)
    • Ground Clearance: 260mm (10.2 in.)
    • Wheelbase: 1280mm (50.4 in.)
    • Dry Weight: 275kg (606 lbs.)
    • Suspension Front: Independent, double A-arm, oil-damped, five preload settings
    • Suspension Rear: Independent, double A-Arm oil-damped, five preload settings
    • Brakes Front: Dual hydraulic disc
    • Brakes Rear: Sealed hydraulic disc
    • Tires Front: AT 25 x 8-12
    • Tires Rear: AT 25 x 10-12
    • Fuel Tank Capacity: 17.5 liter (4.6 gal.)
    • Color: Green, Red

    Specifications

    Engine
    Engine Type SOHC, Four Stroke
    Displacement 454 cc
    Bore x Stroke 84 x 82 mm
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel Injection
    Starting System Ignition: CDI
    Alternator High output magneto generator system
    Chassis
    Front Suspension Independent, double A-arm, oil-damped, five preload settings
    Front Travel 7.1 in
    Front Brake Type Dual hydraulic disc
    Front Tires AT 25 x 8-12
    Rear Travel 8.1 in
    Rear Suspension Independent, double A-Arm oil-damped, five preload settings
    Rear Brake Type Sealed hydraulic disc
    Rear Tires AT 25 x 10-12
    Dimensions/Capacities
    Dry Weight 606 lbs (275 kg)
    Towing Capacity High towing capacity and standard center-mounted trailer hitch
    Fuel Capacity 4.6 gal (17.5 l)
    Ground Clearance 10.2 in. (260 mm)
    Machine Dimensions (LxWxH) 83.5 x 47.6 x 48.0 in. (2120 x 1210 x 1220 mm)
    Wheelbase 50.4 in. (1280 mm)
    Drive Train
    Drive Train QuadMatic CVT-type automatic transmission
    Final Drive Shaft drive
    Transmission V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
    General
    Speedometer LCD
    Odometer LCD
    Lighting 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light
    Colors Green, Red
    Warranty 6 Month Limited Warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model KingQuad® 450AXi
    Style Utility
    MSRP* $6,599.00
    Chassis
    Front Suspension Independent, double A-arm, oil-damped, five preload settings
    Front Travel 7.1 in
    Front Brake Type Dual hydraulic disc
    Front Tires AT 25 x 8-12
    Rear Suspension Independent, double A-Arm oil-damped, five preload settings
    Rear Travel 8.1 in
    Rear Brake Type Sealed hydraulic disc
    Rear Tires AT 25 x 10-12
    Frame
    Dimensions/Capacities
    Dry Weight 606 lbs (275 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity High towing capacity and standard center-mounted trailer hitch
    Fuel Capacity 4.6 gal (17.5 l)
    Ground Clearance 10.2 in. (260 mm)
    Machine Dimensions (LxWxH) 83.5 x 47.6 x 48.0 in. (2120 x 1210 x 1220 mm)
    Wheelbase 50.4 in. (1280 mm)
    Drive Train
    Drive Train QuadMatic CVT-type automatic transmission
    Final Drive Shaft drive
    Transmission V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
    Engine
    Engine Type SOHC, Four Stroke
    Displacement 454 cc
    Bore x Stroke 84 x 82 mm
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel Injection
    Starting System Ignition: CDI
    Alternator High output magneto generator system
    General
    Speedometer LCD
    Tachometer
    Odometer LCD
    Lighting 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light
    Colors Green, Red
    Warranty 6 Month Limited Warranty
