New » Yamaha » Raptor 700R SE
Model Quick Search

$7,999.00

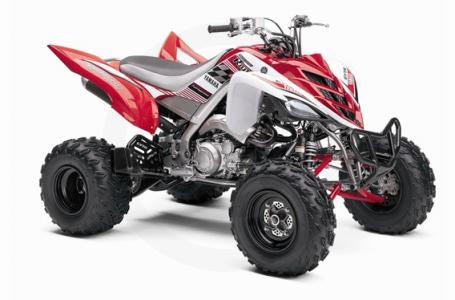

2008 Yamaha Raptor 700R SE
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Maximum muscle and style. The Special Edition rolls in with all the standard Raptor 700R performance and the features plus an aluminum GYTR™ front grab bar, heel guards and special graphics and colors.

    Key Features
    • Raptor 700R Special Edition rolls in with a dealer installed aluminum GYTR™ front grab bar and heel guards, plus special graphics and colors.
    • New piggyback front shocks with high- and low-speed compression adjustment, just like the mighty YFZ450, for greater tunability.
    • Raptor 700R is designed to dominate in the widest range of riding environments, from tight woods to desert to dunes.
    • A 686cc Yamaha fuel-injected engine makes this the most powerful Yamaha sport ATV ever, with big torque right off idle transitioning into a fat midrange and monstrous top end.
    • Yamaha fuel injection means consistently excellent engine performance in a wide range of conditions, elevations and temperatures.
    • Hybrid steel and aluminum frame with a Controlled Fill aluminum subframe and cast swingarm pivot combine to produce a super-strong structure and the lightest ATV in its class.
    • Aggressive styling reflects Raptor 700R’s intent, and YFZ-inspired handling means it walks the walk, too.
    • Long-travel suspension-9.1 inches front, 10.1 rear-a cush seat and excellent ergonomics make the Raptor 700R comfortable to ride hard all day long.
    Engine
    • Forged lightweight piston, connecting rod and crankshaft in the 686cc engine are light and strong, for a hard-hitting, quick-revving powerplant that revs all the way to 9000 rpm. Dual counterbalancers keep it smooth.
    • Yamaha fuel injection means consistently excellent engine performance in a wide range of conditions, elevations and temperatures.
    • Competition-spec dry sump lubrication system boosts usable horsepower and keeps overall engine size more compact.
    • Digital TCI w/16-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
    • Reliable, pushbutton electric start in any gear adds extra convenience.
    • Race-bred five-speed transmission with reverse, along with Raptor 700R’s monstrous powerband, mean there’s a choice of gears in just about all situations.
    • YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power. Heavy-duty clutch features extra-sturdy basket and plates designed to harness the Raptor 700R’s power.
    • Easy-to-reach oil filter and tool-free air filter.
    Chassis/Suspension
    • State-of-the-art chassis combines a steel front section with an aluminum rear section and detachable subframe to create a super-strong structure as well as the lightest ATV in its class.
    • Compact, CAD-designed chassis creates the ideal wheelbase for light, quick, super-accurate steering.
    • Independent aluminum upper A-arm front suspension features new piggyback shocks with high- and low-speed compression adjustability, rebound and preload adjustability, and 9.1-inch travel for outstanding ride quality.
    • YZ-style piggyback rear shock gives 10.1-inch wheel travel with high- and low-speed compression adjustability, for maximum sport versatility, along with preload and rebound adjustment.
    • Front brake master cylinder features an adjustable lever for increased comfort and feel.
    • Drilled rear brake disc reduces unsprung weight for improved suspension action and excellent braking feel.
    • Cast aluminum swingarm carries an eccentric chain quick-adjust mechanism that takes most of the work out of that task.
    • Handlebar-mounted flip-type parking brake lever and rear brake caliper adjust automatically.
    • High-performance 21x7-10 front and 20x10-9 rear Dunlop radials with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
    • Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
    • YFZ450 twin-aluminum-piston front disc brakes and rear disc deliver tremendous stopping power with less unsprung weight.
    Additional Features
    • Long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
    • YFZ450 30-watt multi-reflector halogen headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.
    • Large-capacity, 2.9-gallon fuel tank and Yamaha Fuel Injection (YFI) means more time on the trail between fill-ups.
    Specifications
    • Type: 686cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves
    • Bore x Stroke: 102.0mm x 84.0mm
    • Compression Ratio: 9.2:1
    • Carburetion: Yamaha Fuel Injection (YFI), 44mm
    • Ignition: 16-Bit ECU
    • Starting System: Electric
    • Transmission: 5-speed w/reverse; wet multiplate clutch
    • Drive Train: 2WD; sealed O-ring chain, eccentric adjustment
    • Suspension/Front: Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel
    • Suspension/Rear: Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment, 10.1-in travel
    • Brakes/Front: Dual ventilated hydraulic disc, twin piston
    • Brakes/Rear: Ventilated hydraulic disc, self adjusting park brake function
    • Tires/Front: AT21x7-10 radial
    • Tires/Rear: AT20x10-9 radial
    • L x W x H: 72.6 x 46.1 x 44.5 in
    • Seat Height: 32.0 in
    • Wheelbase: 50.4 in
    • Ground Clearance: 4.4 in
    • Fuel Capacity: 2.9 gal
    • Dry Weight: 396 lb
    • Lighting: Dual 30W Krypton multi-reflector headlights & 3.9/0.5W LED brakelight
    • Warranty: 6 Month (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type 686 cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves
    Displacement 686 cc
    Bore x Stroke 102.0 x 84.0 mm
    Engine Cooling liquid-cooled w/fan
    Starting System Ignition: 16-Bit ECU; Starting System: Electric
    Chassis
    Front Suspension Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment
    Front Travel 9.1 in.
    Front Brake Type Dual ventilated hydraulic disc, twin piston
    Front Tires AT21x7-10 radial
    Rear Suspension Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment
    Rear Travel 10.1 in.
    Rear Brake Type Ventilated hydraulic disc, self adjusting park brake function
    Rear Tires AT20x10-9 radial
    Dimensions/Capacities
    Dry Weight 396 lbs
    Fuel Capacity 2.9 gal.
    Ground Clearance 4.4 in.
    Machine Dimensions (LxWxH) 72.6" x 46.1" x 44.5"
    Wheelbase 50.4 in.
    Drive Train
    Drive Train 2WD; sealed O-ring chain, eccentric adjustment
    Transmission 5-speed w/reverse; wet multiplate clutch
    General
    Lighting Dual 30W Krypton multi-reflector headlights & 3.9/0.5W LED brakelight
    Colors Special Edition Red/White
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2008
    Manufacturer Yamaha
    Model Raptor 700R SE
    Style Sport
    MSRP* $7,999.00
    Chassis
    Front Suspension Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment
    Front Travel 9.1 in.
    Front Brake Type Dual ventilated hydraulic disc, twin piston
    Front Tires AT21x7-10 radial
    Rear Suspension Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment
    Rear Travel 10.1 in.
    Rear Brake Type Ventilated hydraulic disc, self adjusting park brake function
    Rear Tires AT20x10-9 radial
    Frame
    Dimensions/Capacities
    Dry Weight 396 lbs
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.9 gal.
    Ground Clearance 4.4 in.
    Machine Dimensions (LxWxH) 72.6" x 46.1" x 44.5"
    Wheelbase 50.4 in.
    Drive Train
    Drive Train 2WD; sealed O-ring chain, eccentric adjustment
    Final Drive
    Transmission 5-speed w/reverse; wet multiplate clutch
    Engine
    Engine Type 686 cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves
    Displacement 686 cc
    Bore x Stroke 102.0 x 84.0 mm
    Cylinders
    Engine Cooling liquid-cooled w/fan
    Fuel System
    Starting System Ignition: 16-Bit ECU; Starting System: Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multi-reflector headlights & 3.9/0.5W LED brakelight
    Colors Special Edition Red/White
    Warranty 6 Month (Limited Factory Warranty)
